SD60-C5 Crawler Dozer

Overall Weight

70,630 Kg


Engine Model

CUMMINS QSK19


Engine Power

450kW(604 HP)/1800 rpm


Overview of the SD60 Dozer

The Shantui SD60 Dozer is designed to provide exceptional performance in heavy-duty earthmoving, construction, and mining applications. Powered by the Cummins QSK19 engine, this dozer delivers 450 kW of rated power with a maximum torque of 3019 Nm. The SD60 boasts superior gradeability and stability, making it ideal for working on steep slopes and rough terrains. With its advanced transmission and durable undercarriage system, the SD60 excels in efficiency and reliability, even under the most demanding conditions. Its high-performance features ensure maximum productivity and durability across a variety of job sites.

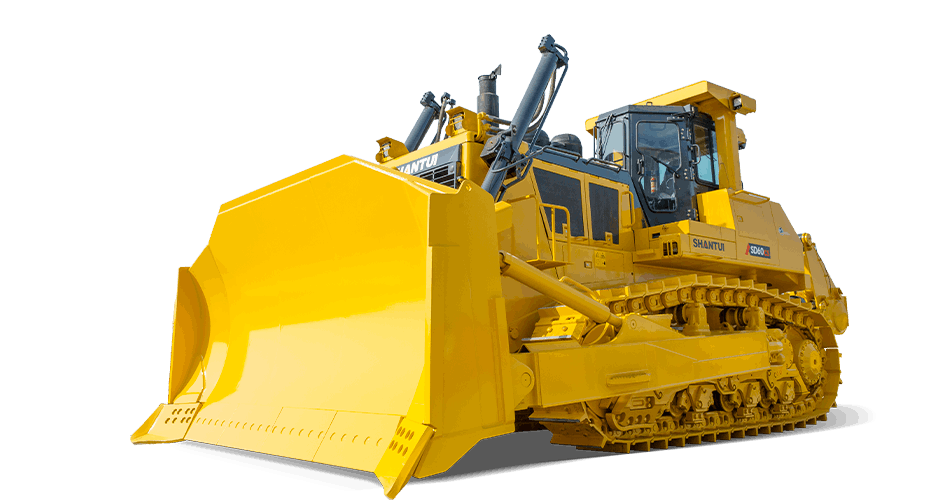

A bulldozer, yellow, grading soil on a construction site

Key Features:

  • Powerful Engine: The Cummins QSK19 engine offers 450 kW of rated power and 3019 Nm of torque, ensuring the SD60 handles the toughest tasks.
  • Exceptional Stability: With 30° gradeability and front/rear and left/right stability, the SD60 can tackle challenging terrains with ease.
  • Advanced Undercarriage: Modular design, equalizing beam, and K-type oscillation suspension system enhance durability and traction.
  • Versatile Blade and Ground Pressure: The dozer is equipped with a master link single grouser lubricated track shoe for maximum performance on different surfaces.

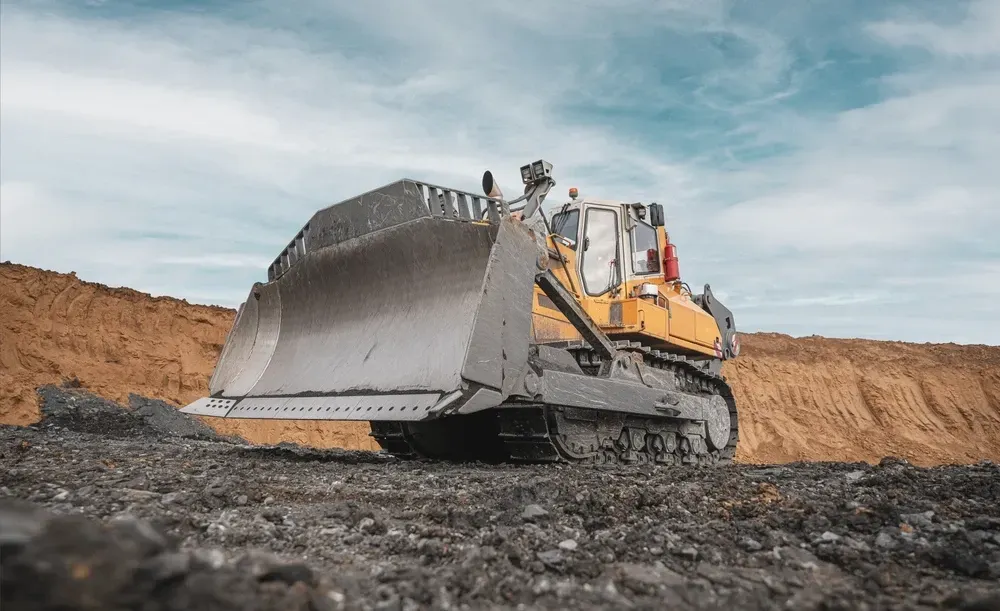

Yellow bulldozer pushing a pile of dirt and rocks on a sunny day — Shantui QLD in Kingsthorpe, QLD

Technical Specifications:

Engine: Cummins QSK19, 450 kW (600 hp) rated power

Displacement: 19 L

Max Torque: 3019 Nm @ 1300 rpm

Travelling Speed:

  • Forward 1st: 3.8 km/h
  • Forward 2nd: 6.8 km/h
  • Forward 3rd: 11.8 km/h
  • Reverse 1st: 5.1 km/h
  • Reverse 2nd: 9.2 km/h
  • Reverse 3rd: 15.8 km/h

Gradeability: 30°

Operating Weight: 70,630 kg

Transport Weight: 52,100 kg

Ground Pressure: 130.2 kPa

Min Turning Radius:

  • Without blade: 3864 mm
  • With blade: 6786 mm

Fuel Consumption: 216 g/kW·h

Undercarriage:

  • Number of Track Shoe: 40
  • Track Shoe Width: 610/710/810 mm
  • Track Shoe Type: Master link single grouser lubricated
  • Track Pitch: 280 mm

Why Choose the Shantui SD60 Dozer?

The SD60 Dozer is engineered for maximum performance in heavy-duty applications. It offers powerful performance, advanced stability, and robust undercarriage systems to ensure long-term durability and efficiency. Whether you’re working in construction, mining, or earthmoving, the SD60 will meet the demands of your toughest tasks with precision and reliability.
