DH24-B3 Crawler Dozer

Overall Weight

XL: 24,000 Kg


Engine Model

CUMMINS QSL9 EURO STAGE V


Engine Power

212(285)/2100 KW/RPM


Overview of the Shantui DH24 Dozer

The Shantui DH24 Crawler Dozer is a high-performance machine designed for large-scale, heavy-duty earthmoving applications. Powered by the Cummins QSL9 engine, it delivers exceptional performance with 213 kW (286 hp) of gross power and 1636 Nm of torque. The DH24 features an independent dual-circuit electric control hydrostatic drive system that provides excellent speed-load matching for efficiency and versatility. With a robust chassis system available in both XL and LGP configurations, the DH24 is ideal for tough terrains, including wetland and rough environments. Whether for grading, ripping, or heavy lifting, the DH24 offers power, durability, and productivity.

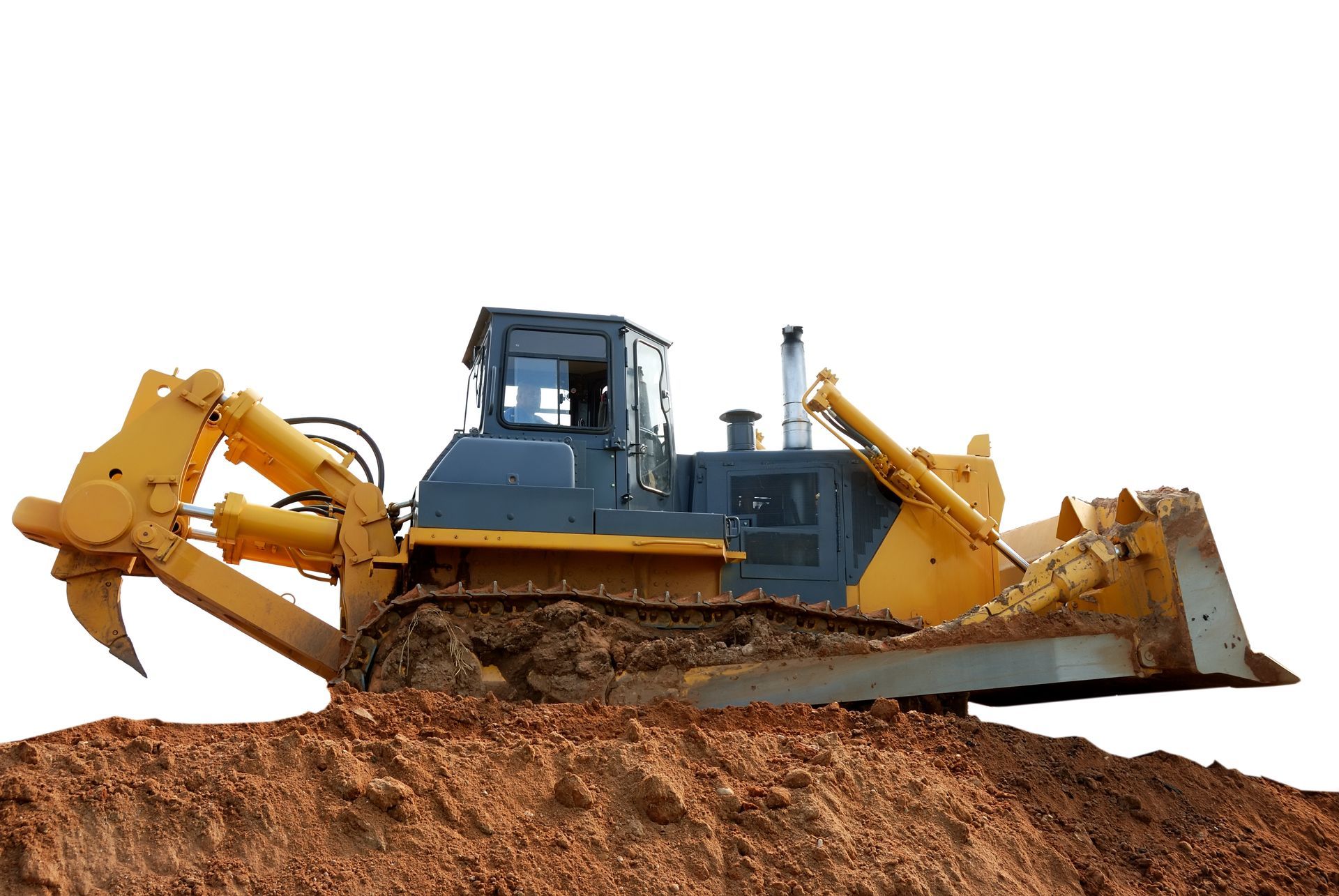

A bulldozer, yellow, grading soil on a construction site

Key Features:

  • Powerful Engine: The Cummins QSL9 engine offers 213 kW (286 hp) of gross power with 1636 Nm of maximum torque, ensuring robust performance for demanding tasks.
  • Hydrostatic Drive System: Featuring an independent dual-circuit electric control hydrostatic drive system for smooth, efficient operation and ease of maintenance.
  • Superior Traction and Stability: Available in XL and LGP configurations, with varying track widths and grounding pressure to optimize performance on different surfaces.
  • Heavy-Duty Blade Options: The DH24 offers a 6.5 m³ Semi-U blade for the XL version and a 6.4 m³ straight-tilt blade for the LGP version, making it ideal for material handling and grading.
  • Versatile Ripper: A three-shank ripper with a maximum ripping depth of 655 mm, offering superior performance in breaking up tough soil.
Yellow bulldozer pushing a pile of dirt and rocks on a sunny day — Shantui QLD in Kingsthorpe, QLD

Technical Specifications:

  • Engine: Cummins QSL9, 213 kW (286 hp) gross power
  • Hydrostatic Drive: Independent dual-circuit with intelligent load-speed matching
  • Track Shoe Width: 560 mm (XL), 910 mm (LGP)
  • Blade Capacity: 6.5 m³ (Semi-U) for XL, 6.4 m³ (Straight-tilt) for LGP
  • Fuel Capacity: 352 L
  • Operating Weight: 23,562 kg (XL), 24,823 kg (LGP)
  • Max. Lifting Height of Blade: 1247 mm (XL), 1300 mm (LGP)
  • Max. Digging Depth of Blade: 540 mm (XL), 550 mm (LGP)
  • Max. Ripping Depth (Ripper): 655 mm
  • Ripper Width: 2000 mm

Why Choose the Shantui DH24 Dozer?

The Shantui DH24 is a versatile, high-powered dozer engineered to perform in the most demanding conditions. Whether you’re working in construction, mining, or heavy-duty earthmoving, the DH24 delivers exceptional performance, stability, and efficiency. With its powerful engine, advanced hydrostatic drive, and large blade and ripper capacities, the DH24 is an ideal choice for large-scale operations requiring power and precision.
