DH10-B3 Crawler Dozer

Overall Weight

XL:9,200kg | LGP:9,500kg‍


Engine Model

Cummins QSF3.8


Engine Power

86kW(115hp)

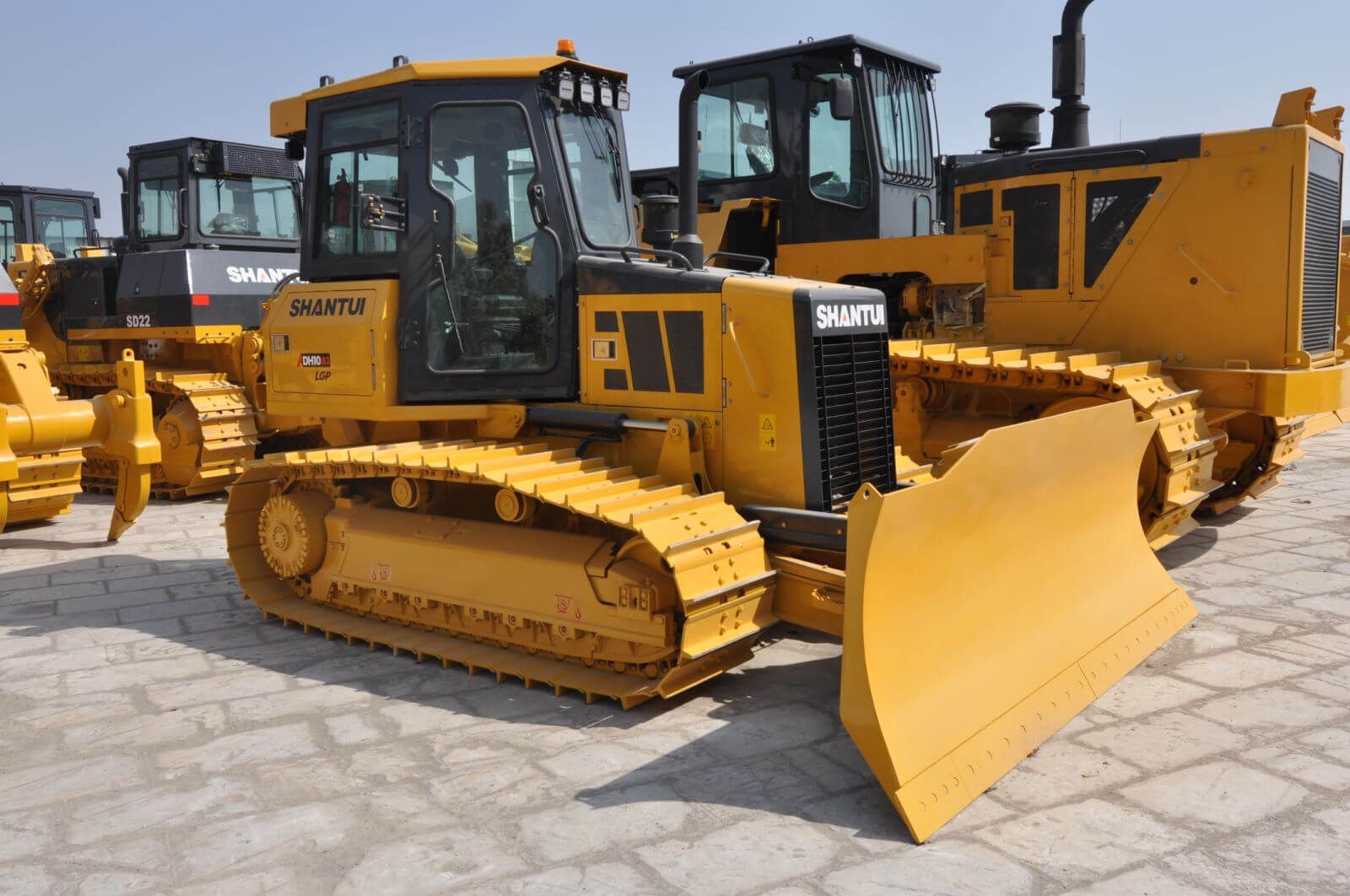

Overview of the Shantui DH10 Dozer

The Shantui DH10 is a highly efficient and durable crawler dozer designed to excel in a variety of construction, mining, and earthmoving applications. Powered by a Cummins QSF3.8 engine, the DH10 delivers 86 kW (115 hp) of gross power, making it ideal for tough terrain and heavy workloads. Its advanced dual-circuit hydrostatic drive system ensures intelligent load matching for optimal performance, while the rugged chassis system and large tracks offer excellent ground clearance and stability.

A bulldozer, yellow, grading soil on a construction site

Key Features:

  • Reliable Engine: Cummins QSF3.8 engine with 86 kW (115 hp) power output, providing excellent fuel efficiency and durability.
  • Hydrostatic Drive System: Dual-circuit electric control system with intelligent load matching for efficient power use.
  • Durable Chassis System: Available in XL and LGP configurations, with tracks optimized for low ground pressure, offering superior stability and traction.
  • Impressive Blade Capacity: The standard PAT (Power Angle Tilt) blade comes in two configurations, offering 2.32 m³ (3.03 cu. yd.) capacity for XL and 2.6 m³ (3.4 cu. yd.) capacity for LGP.
  • Excellent Maneuverability: The dozer features a maximum traveling speed of 9 km/h (5.6 mph) in both forward and backward directions.
Yellow bulldozer pushing a pile of dirt and rocks on a sunny day — Shantui QLD in Kingsthorpe, QLD

Technical Specifications:

  • Engine: Cummins QSF3.8, 86 kW (115 hp) gross power
  • Hydrostatic Drive: Dual-circuit electric control system
  • Track Shoe Width: 460 mm (18 in.) for XL, 630 mm (25 in.) for LGP
  • Blade Capacity: 2.32 m³ (3.03 cu. yd.) for XL, 2.6 m³ (3.4 cu. yd.) for LGP
  • Fuel Capacity: 197 L (52 gal.)
  • Operating Weight: 9,200 kg (20,283 lb.) for XL, 9,500 kg (20,944 lb.) for LGP
  • Machine Length: 4,442 mm (175 in.)
  • Ground Clearance: 390 mm (15.4 in.)
  • Max. Lifting Height of Blade: 900 mm (35 in.)
  • Max. Digging Depth of Blade: 450 mm (17.7 in.)
  • Max Blade Turning Angle: 25°

Why Choose the Shantui DH10 Dozer?

The Shantui DH10 is engineered to perform reliably in challenging environments. Its advanced hydrostatic drive system and durable chassis make it an excellent choice for jobs requiring powerful traction and efficient blade operation. With configurations that reduce ground pressure and increase efficiency, the DH10 is ideal for applications ranging from construction site preparation to heavy earthmoving operations.
